Reduce Energy Consumption in Welding Fume Extraction Systems

In the industrial world, energy efficiency is no longer just a cost-saving measure—it’s a necessity for staying competitive and sustainable. Welding fume extraction systems, while essential for maintaining a safe working environment, can be significant energy consumers. Finding ways to reduce their energy consumption without compromising performance is crucial for any facility aiming to optimize operations and reduce overhead costs.

Assessing System Efficiency

The first step in reducing energy consumption in welding fume extraction systems is to assess the current efficiency of your system. This involves a comprehensive review of how well the system is performing and identifying areas where energy might be wasted. Regular maintenance plays a key role here; poorly maintained systems often require more energy to operate effectively.

Start by examining the condition of filters, fans, and ductwork. Clogged filters or leaks in ducts can force the system to work harder, consuming more energy and generally providing worse results. Ensuring that all components are clean and functioning optimally is essential for maximizing efficiency.

For a new installation, consider the design of your extraction system. Systems that are not properly sized for the facility or that have inefficient layouts may require more power to achieve adequate extraction. Optimizing the system’s design to match the specific needs of your operation can lead to significant energy savings.

Optimizing Airflow

One important consideration is the selection and positioning of the extractors. It is generally more efficient to choose smaller extractors that can be positioned closer to the source of fumes, as they require less airflow to capture contaminants effectively. This approach not only enhances the system’s performance but also reduces overall energy consumption. Additionally, the system must be carefully designed to provide the proper airflow—no more, no less—to ensure optimal efficiency. A well-designed system that balances extractor size and positioning with precise airflow requirements can lead to significant energy savings and improved performance.

Here are the recommended airflow values per extractor for different technologies:

• Fume extraction MIG gun: 70 to 120 cfm (depending on gun design and process parameters)
• 3″ fume extraction arm: 200 cfm
• 4″ fume extraction arm: 300 cfm
• 6″ fume extraction arm: 600 cfm
• 2″ fume extraction nozzle: 200 cfm
• 3″ fume extraction nozzle: 300 cfm
• 4″ fume extraction nozzle: 400 cfm

Another way to optimize airflow is by ensuring that the ductwork is properly designed and installed. The size of the ducts should match the requirements of your system—undersized ducts can cause increased pressure drops, forcing the system to work harder, while oversized ducts can lead to inefficient airflow distribution. As a rule of thumb, we generally recommend designing the ductwork to have a 1” H2O pressure drop per 100 ft.

Finally, consider implementing adjustable dampers or airflow control devices that allow for precise management of airflow in the system. By tailoring the airflow to the specific needs of each operation, you can reduce energy consumption without compromising extraction efficiency.

Automation and Smart Controls

Automation and smart controls are essential components of an energy-efficient welding fume extraction system. By automating the control of various elements within the system, you can ensure that energy is used only when and where it’s needed, significantly reducing waste.

One important tool is the use of soft starters for motors. Soft starters gradually ramp up the motor’s power, limiting the inrush current that occurs when the motor is first started. This reduces the strain on the electrical system and decreases energy consumption during startup, which can be particularly beneficial in systems with large motors that are frequently cycled on and off. Additionally, since the maximum peak current can directly impact your energy bill, limiting this peak with soft starters not only protects your equipment but also contributes to overall cost savings.

Another key component is the integration of automatic valves that control airflow at each extractor within the system. These valves are designed to open when welding is taking place, allowing extraction to occur only when needed, and to shut off airflow when there is no welding activity. This targeted control ensures that energy is used efficiently, reducing unnecessary power consumption while maintaining effective fume extraction. By activating airflow only where and when it’s required, these automatic valves help optimize system performance without sacrificing energy efficiency.

Smart controls can also monitor the overall system performance in real time, adjusting the operation of fans, dampers, and other components based on current needs. By continuously optimizing the system’s performance, smart controls help maintain the balance between energy efficiency and effective fume extraction, ensuring that the system operates at peak efficiency at all times.

Des questions? Posez-les dans le chat en bas à droite de votre écran ou lors de l’un de nos webinaires.

Variable Frequency Drives (VFDs) or Not…

Variable Frequency Drives (VFDs) offer a way to control the speed of fans, potentially leading to energy savings. By adjusting the fan speed to match the actual demand, VFDs can reduce the amount of energy the system consumes. However, in the context of welding fume extraction, reducing fan speed through VFDs also lowers both airflow and vacuum, which negatively impacts the system’s extraction efficiency.

This trade-off means that while VFDs can be an effective tool for reducing energy consumption, they must be used with great caution and are generally not recommended for welding fume extraction. For situations where maintaining good extraction efficiency is important, alternative energy-saving strategies will be more suitable.

Energy Recovery Systems

Energy recovery systems are an effective way to capture and reuse energy that would otherwise be wasted in welding fume extraction systems. These systems work by recovering heat or energy from the exhaust air and redirecting it back into the facility or system, reducing overall energy consumption.

There are several types of energy recovery systems that can be integrated into welding fume extraction setups. Heat exchangers, for instance, transfer heat from the exhaust air to incoming fresh air, pre-warming or pre-cooling it depending on the season. This reduces the load on the heating or cooling systems, leading to potential energy savings.

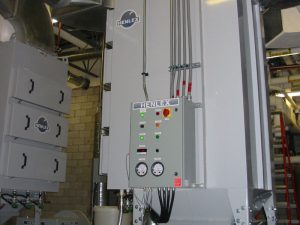

A more straightforward approach is to use a dust collector with efficient filters and recirculate the filtered air back into the facility. This limits the amount of air that needs to be brought in from outside, which would otherwise need to be heated or cooled. However, it’s important to ensure that recirculating the air is safe and compliant with regulations, depending on the location and the type of pollutants present. Additionally, using the proper filters is essential to maintain air quality and ensure the system’s effectiveness.

Implementing energy recovery systems can lead to more sustainable operations by lowering energy costs and reducing environmental impact. These systems are especially valuable in facilities with high energy demands, as they provide a way to reclaim and reuse energy that would otherwise be lost.

When considering the addition of an energy recovery system to a welding fume extraction setup, it’s important to weigh the potential energy savings against the initial investment. While these systems can lead to cost reductions in large-scale operations with high energy demands, the return on investment (ROI) may be less favorable for smaller facilities with lower energy usage. A detailed cost-benefit analysis, factoring in system lifespan, maintenance costs, and projected savings, is essential to determine whether the investment is justified or if alternative energy-saving measures might offer a better ROI.

Conclusion

Reducing energy consumption in welding fume extraction systems is not just about cutting costs—it’s about enhancing the overall efficiency and sustainability of your operations. By carefully assessing system efficiency, optimizing airflow, using automatic valves or other smart controls, and potentially adding an energy recovery system, you can strike a balance between energy savings and effective fume extraction.

Incorporating these strategies will not only lower your energy bills but also contribute to a better and more environmentally friendly workplace. Regular evaluations and upgrades are key to maintaining optimal performance, allowing your facility to stay ahead in an increasingly energy-conscious industrial landscape. By making these adjustments, you can ensure that your welding fume extraction system remains both cost-effective and highly efficient.
